Kit includes

  • Limited Slip Differential LSD – Externally adjustable!
  • Complete Bilet aircraft grade aluminium casings
  • Sequential Mechanism with Dog engagement
  • Input and Dual Output Shafts
  • Final drive
  • Gears 1st-7th
  • Shifting Forks
  • Shifting Rods
  • Complete Bearing and Needle Bearing set
  • Gear Position Indicator Sensor
  • Inlet / Outlet for oil pump and cooler
  • Position for oil temperature sensor
Contact us

Car model

Yaris GR, Corolla GR

Kit weight

55.4 Kg

Gearbox type

Sequential 7 speed

Shift Speed

< 40 millisecond

Torque rating

1050 ft lbs / 1400 Nm

Our advantages

AVAILABLE FOR:

Toyota Yaris GR / Toyota Corolla GR

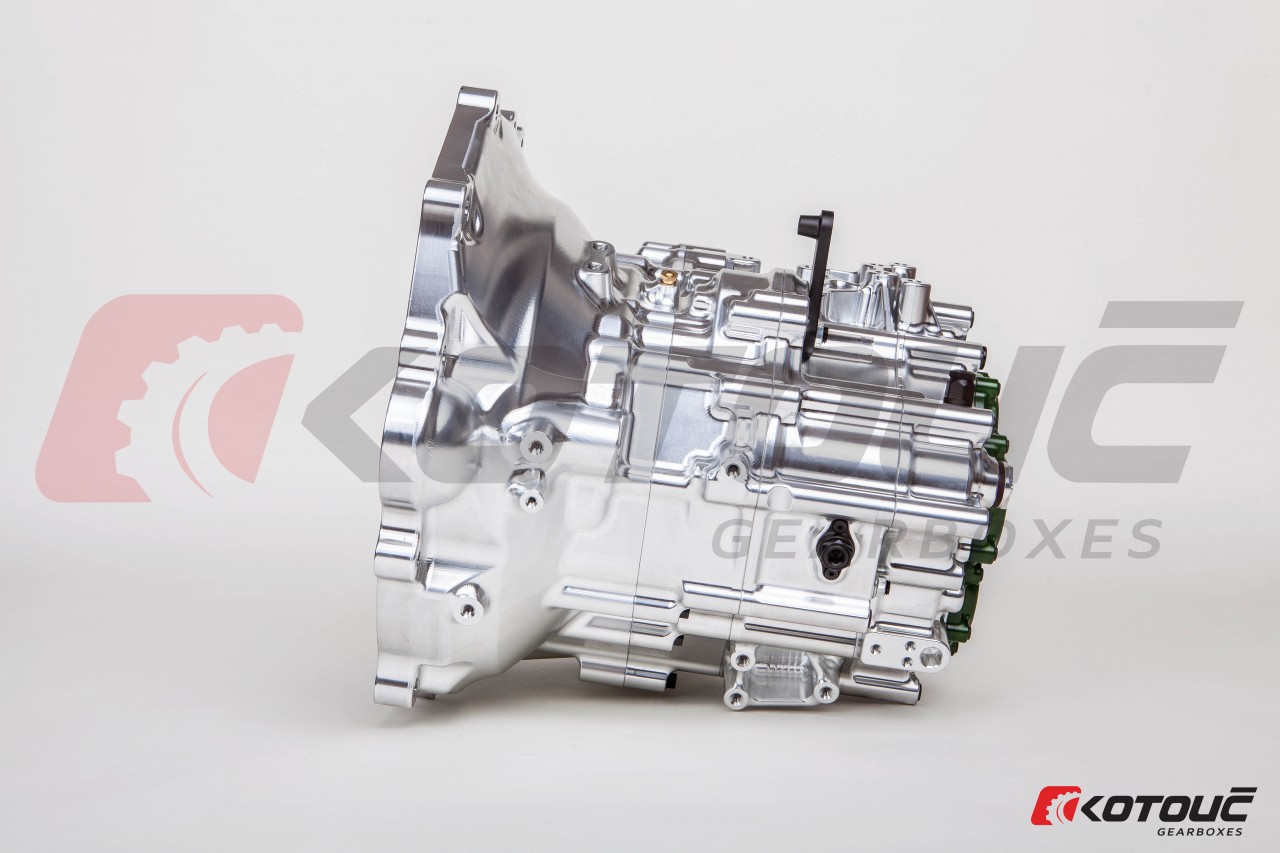

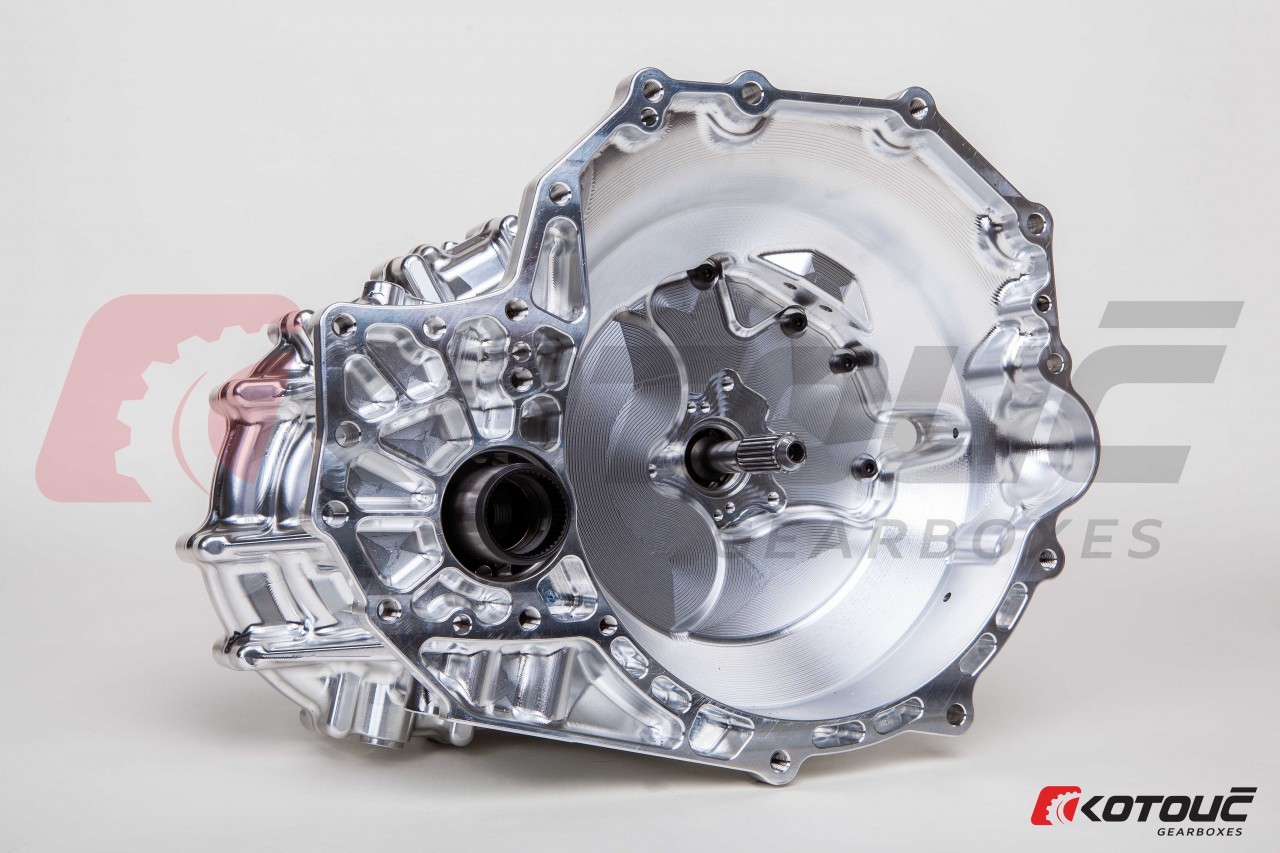

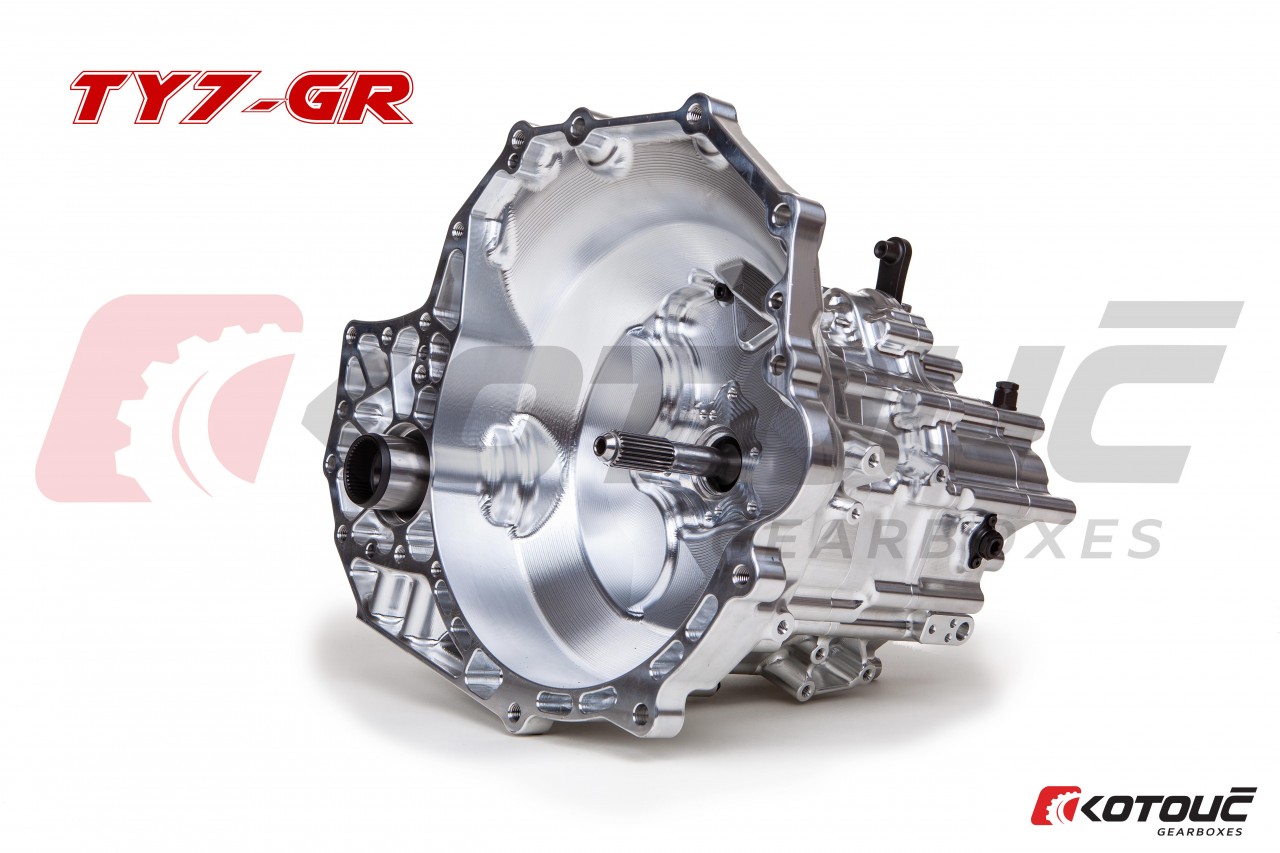

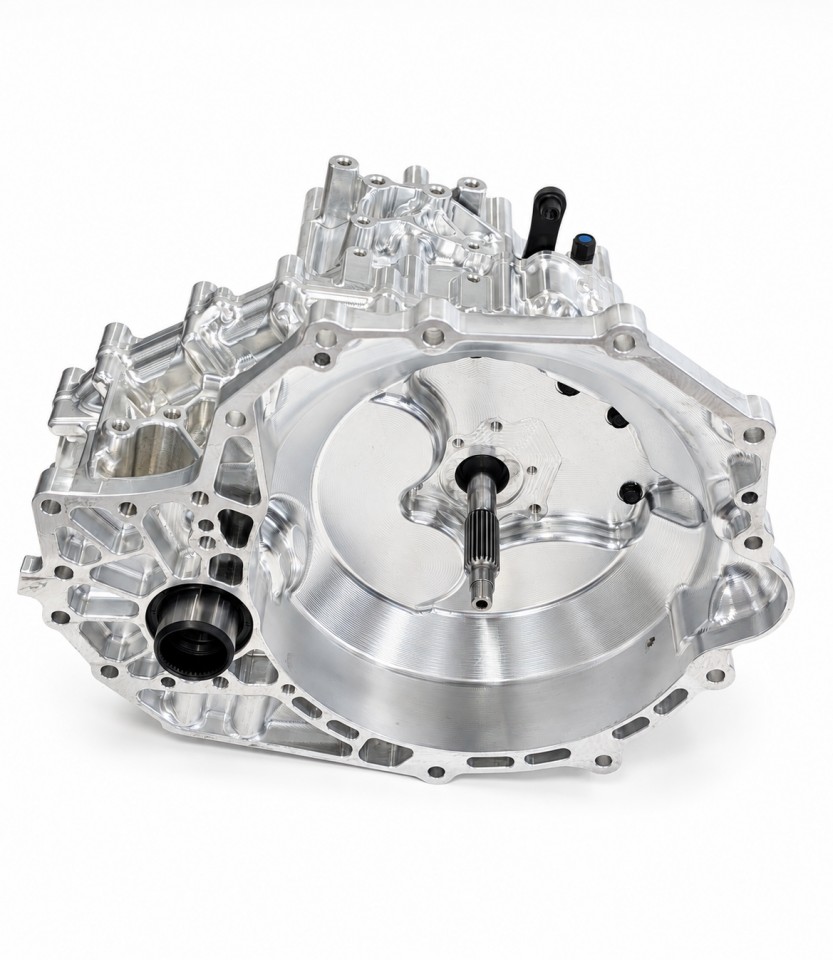

The Toyota Yaris / Corolla GR just got serious! One of the most popular and in demand cars on the road and track now has a gearbox to suit! If you are looking to give your Yaris / Corolla GR the superstar treatment, then the 7 speed sequential gearbox from Kotouc Gearboxes is a must.

The 7 speed sequential gearbox is designed to fit in the original position as a replacement for the standard gearbox. Additionally, the same clutch, flywheel, starter motor, gearbox mounts, driveshafts all stay the same. There is no modification required to any of those parts, so installation is swift and time and costs are saved.

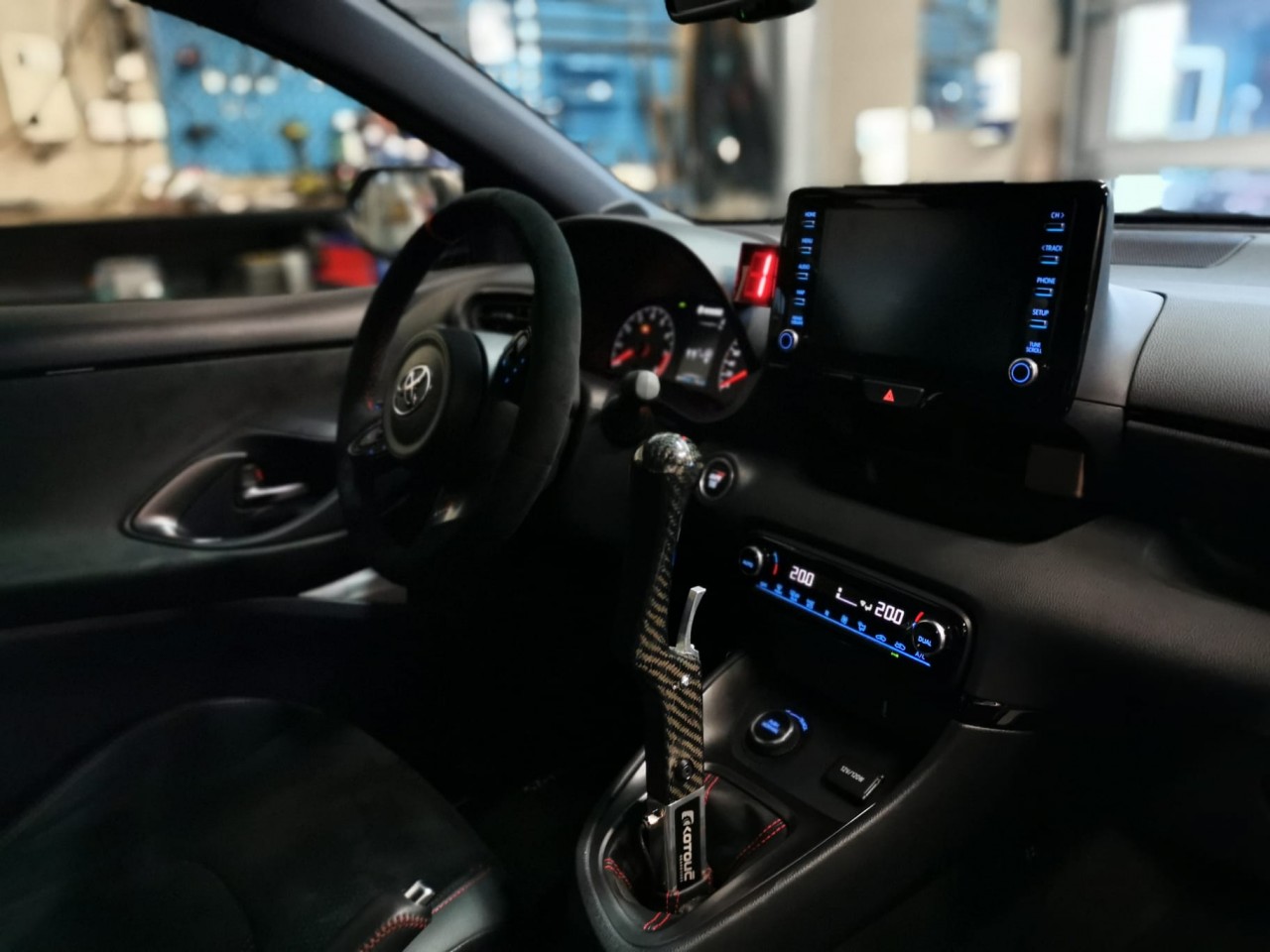

For those looking to upgrade, the sequential gearbox is prepared for a hydraulic clutch bearing, and mounting position for a piston in the case of paddle shifting. An oil outlet and inlet are available for the compatibility of an oil pump and cooler and a spare thread prepared for an oil temperature sensor.

Our dogring technology and engineering of the shifting barrel allows for the smoothest and cleanest shifting gearbox on the market. The arrangement of the gearing on the shafts allow for a 7 speed gearbox in a space usually that only 5 gears would fit. Moreover, the maximum width of the gears are 25mm!! Almost twice the size of the original Toyota gears.

With the popularity of this gearbox already high, there is no tome to wait! Call us today to get your hands on this amazing gearbox!





  • Application: Toyota Yaris GR / Toyota Corolla GR
  • Gearbox Type: 7 speed full sequential gearbox
  • Max torque: 1400NM
  • Gear shift layout: R-N-1-2-3-4-5-6-7-R-N-1-2...
  • Tooth Profile: straight cut
All parts are REM Isotropic superfinished as standard!












































Videos

Gear ratios available

TY7-GR Yaris sequential V1 3.86 3.38

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 30t 12t 2,50
3rd 29t 17t 1,71
4th 25t 16t 1,56
5th 25t 22t 1,14
6th 25t 26t 0,96
7th 20t 21t 0,95

TY7-GR Yaris sequential V1-II 3.86 3.38

GEAR Tooth count GEAR
ratio
output input
1st 34t 12t 2,83
2nd 28t 12t 2,33
3rd 26t 16t 1,63
4th 26t 17t 1,53
5th 23t 20t 1,15
6th 20t 20t 1,00
7th 20t 20t 1,00

TY7-GR Yaris sequential V2 5.08 4.36

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 30t 12t 2,50
3rd 29t 17t 1,71
4th 25t 16t 1,56
5th 25t 22t 1,14
6th 25t 26t 0,96
7th 20t 21t 0,95

TY7-GR Yaris sequential V2-II 5.08 4.36

GEAR Tooth count GEAR
ratio
output input
1st 34t 12t 2,83
2nd 28t 12t 2,33
3rd 26t 16t 1,63
4th 26t 17t 1,53
5th 23t 20t 1,15
6th 20t 20t 1,00
7th 20t 20t 1,00

TY7-GR Yaris sequential V3 4.23 3.67

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 30t 12t 2,50
3rd 29t 17t 1,71
4th 25t 16t 1,56
5th 25t 22t 1,14
6th 25t 26t 0,96
7th 20t 21t 0,95

TY7-GR Yaris sequential V3-II 4.23 3.67

GEAR Tooth count GEAR
ratio
output input
1st 34t 12t 2,83
2nd 28t 12t 2,33
3rd 26t 16t 1,63
4th 26t 17t 1,53
5th 23t 20t 1,15
6th 20t 20t 1,00
7th 20t 20t 1,00

TY7-GR Yaris sequential V4 4.67 4.00

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 30t 12t 2,50
3rd 29t 17t 1,71
4th 25t 16t 1,56
5th 25t 22t 1,14
6th 25t 26t 0,96
7th 20t 21t 0,95

TY7-GR Yaris sequential V4-II 4.67 4.00

GEAR Tooth count GEAR
ratio
output input
1st 34t 12t 2,83
2nd 28t 12t 2,33
3rd 26t 16t 1,63
4th 26t 17t 1,53
5th 23t 20t 1,15
6th 20t 20t 1,00
7th 20t 20t 1,00

TY7-GR Yaris sequential V5 3.53 3.12

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 30t 12t 2,50
3rd 29t 17t 1,71
4th 25t 16t 1,56
5th 25t 22t 1,14
6th 25t 26t 0,96
7th 20t 21t 0,95

TY7-GR Yaris sequential V5-II 3.53 3.12

GEAR Tooth count GEAR
ratio
output input
1st 34t 12t 2,83
2nd 28t 12t 2,33
3rd 26t 16t 1,63
4th 26t 17t 1,53
5th 23t 20t 1,15
6th 20t 20t 1,00
7th 20t 20t 1,00
