MS6-9 Sequential Gearbox kit

BLACK EDITION! 6 speed

Mitsubishi Universal

Kit includes

  • Complete Sequential Mechanism with Dog engagement
  • Main rear casing
  • Final Drive

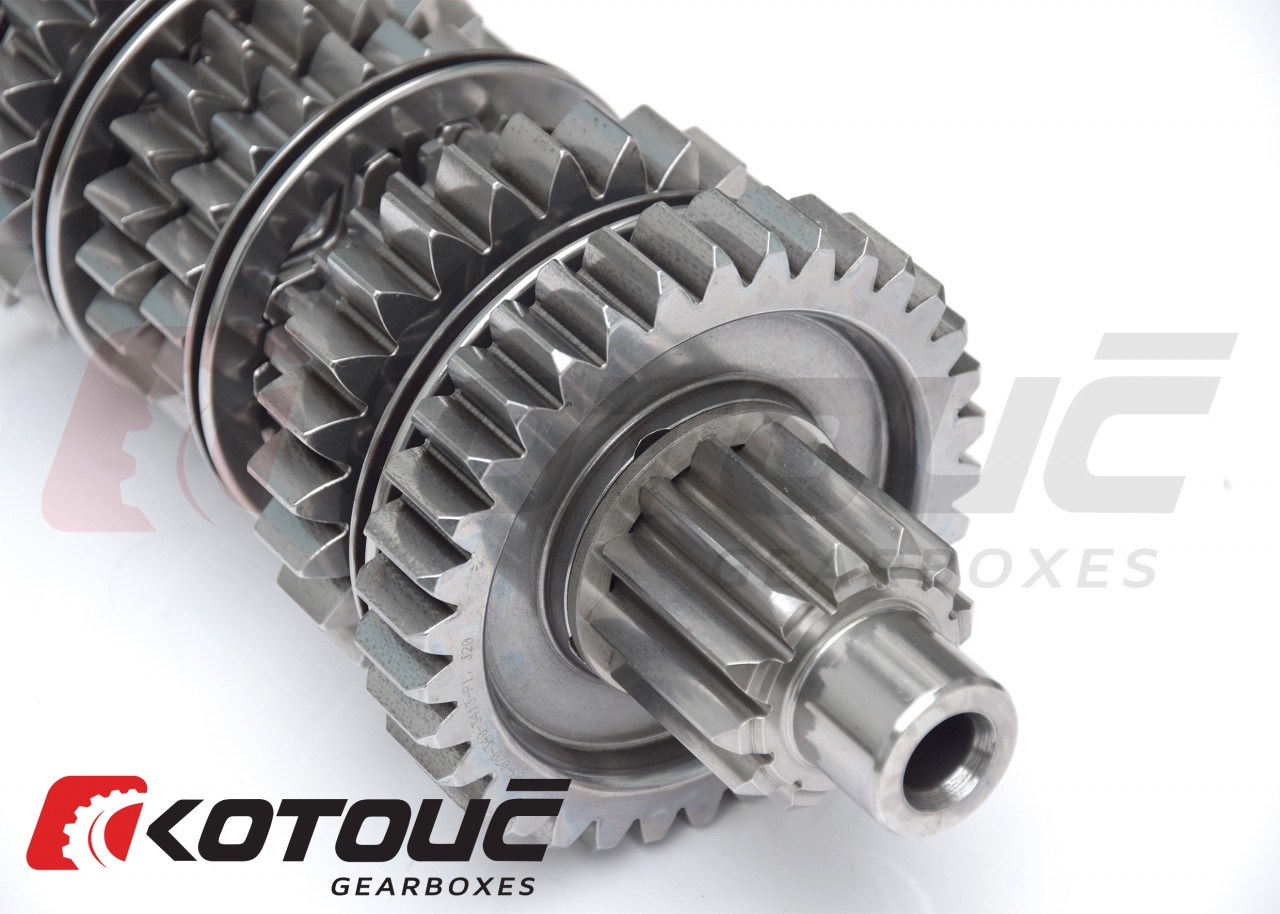

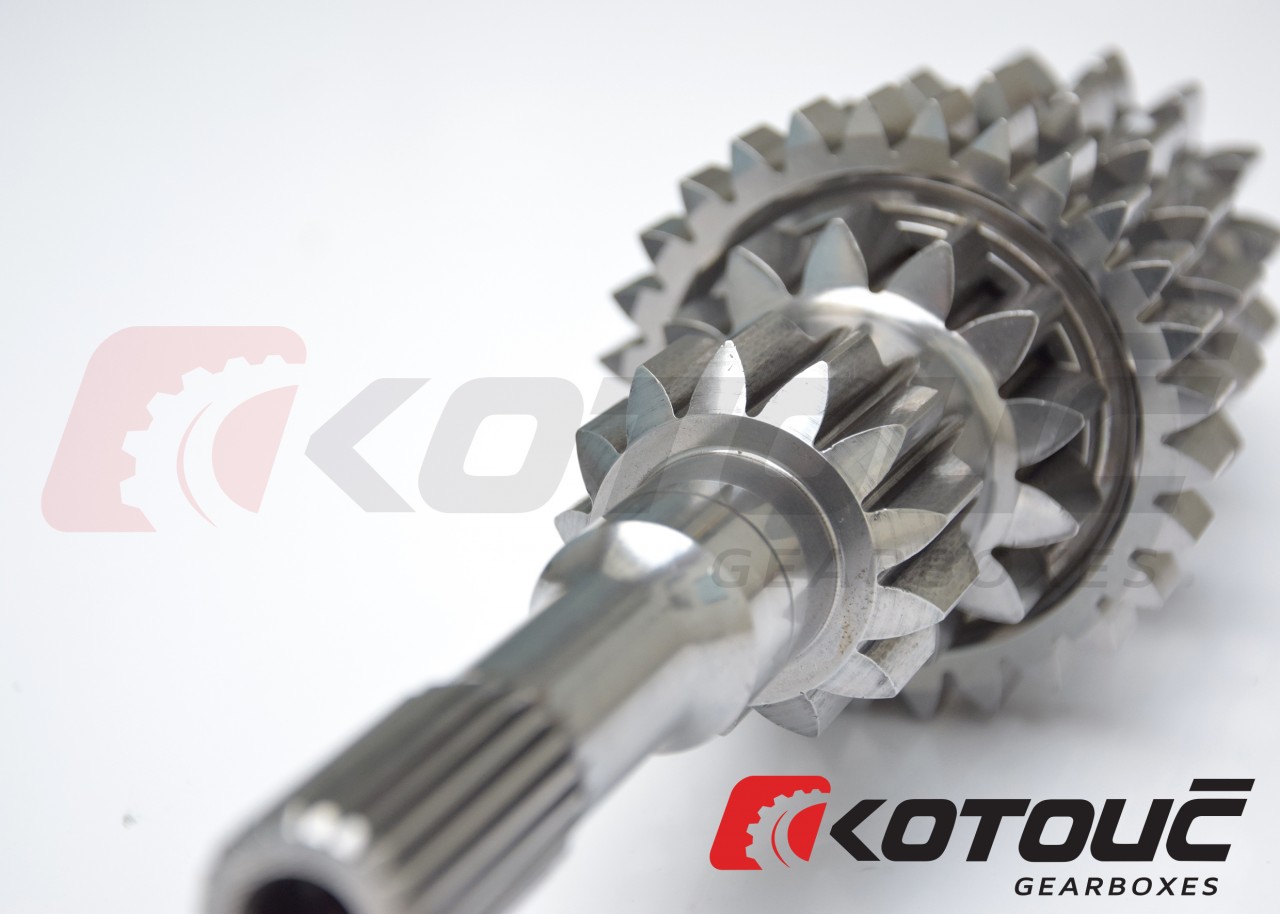

  • Input and Output Shafts
  • Gears 1st-6th
  • Shifting Forks
  • Shifting Rods
  • Complete Bearing and Needle Bearing set
  • Internal Oil Pump with Inlet/Outlet
  • Hydraulic Inlet/Outlet
  • Gear Position Indicator Sensor
  • Holder for silenblock
  • Internal Shifting Piston optional
Contact us

Kit weight

35 Kg

Gearbox type

Sequential

Car model

Mitsubishi Evo 6-9

Torque rating

665 ft lbs / 900 Nm

Our advantages

NOW WITH NEW UPGRADES!

The MS6-9 Sequential Gearbox constructed for the Mitsubishi Evo 9 is the ultimate in transmission technology for the Evolution on the market today. It is designed with 6 forward gears for increased accelleration performance!!

Rated to 900NM torque!

The MS6-9 Sequential Gearbox for Mitsubishi Evo IX incorporates the Kotouc Gearboxes patented dogring technology for short, smooth and quick gear changes. Flatshifting of gears are done with ease with a quick and smooth feel.

The sequential gearbox is supplied with an internal oil pump to maintain low transmission oil temperatures. The inlet and outlets allowing for universal compatibility with oil coolers.

The Mitsubishi Sequential Gearbox also has been future proofed for hydraulic paddle shifting. As an optional upgrade, we can install a shifting piston directly inside the gearbox, thereby saving you alot of weight on additional parts should you wish to upgrade to a paddle shift in the future.

  • Weight: 54.7kgs
  • Max torque: 900NM
  • Gear shift layout: R-N-1-2-3-4-5-6-R-N-1-2...
  • Choice of 8 ratios and customisation is available

2019 UPGRADES

  • Stronger rear casing
  • CNC billet silenblock holder
  • CNC billet oil pump cover
  • Stronger reverse gear
  • CNC billet selector
  • Reduced gear and shift friction
All parts are REM isotropic superfinished!

Gear ratios available

Mitsubishi sequential gearbox Evo IX P1 14/54

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 24t 24t 1,00
6th 20t 24t 0,83

Mitsubishi sequential gearbox Evo IX P2 13/56

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
1st 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 24t 24t 1,00
6th 20t 24t 0,83

Mitsubishi sequential gearbox Evo IX P3 12/57

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 24t 24t 1,00
6th 20t 24t 0,83

Mitsubishi sequential gearbox Evo IX P4 12/59

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 24t 24t 1,00
6th 20t 24t 0,83

Mitsubishi sequential gearbox Evo IX P5 14/54

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89

Mitsubishi sequential gearbox Evo IX P6 13/56

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89

Mitsubishi sequential gearbox Evo IX P7 12/57

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89

Mitsubishi sequential gearbox Evo IX P8

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89
