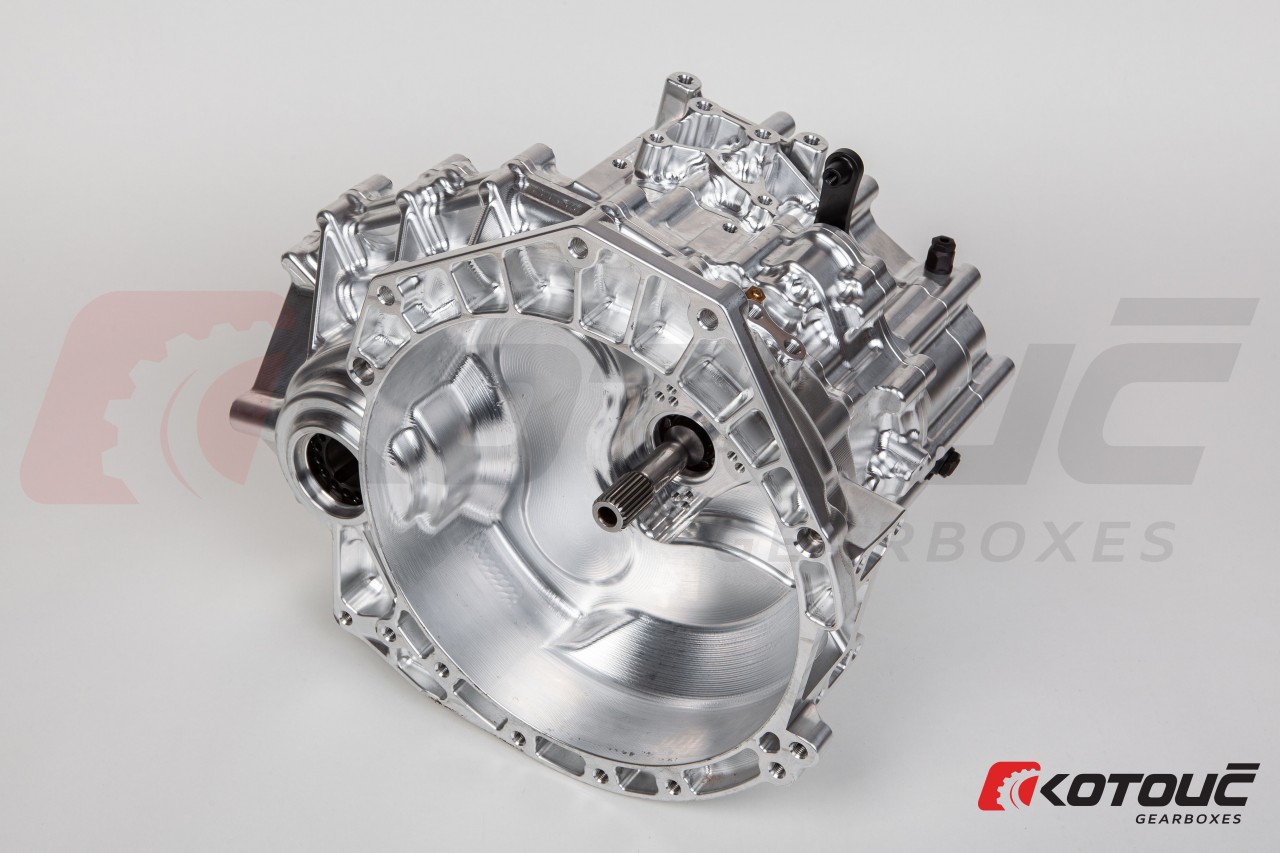

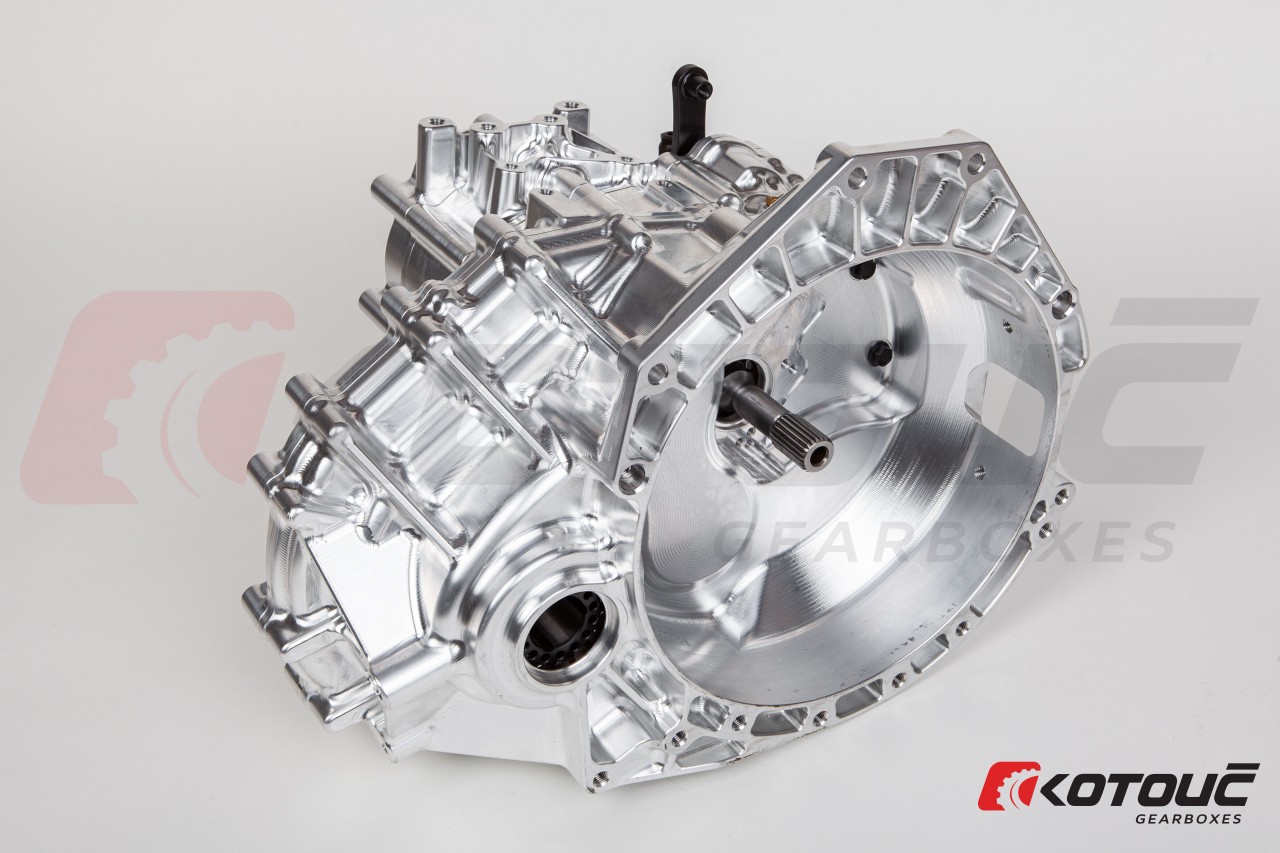

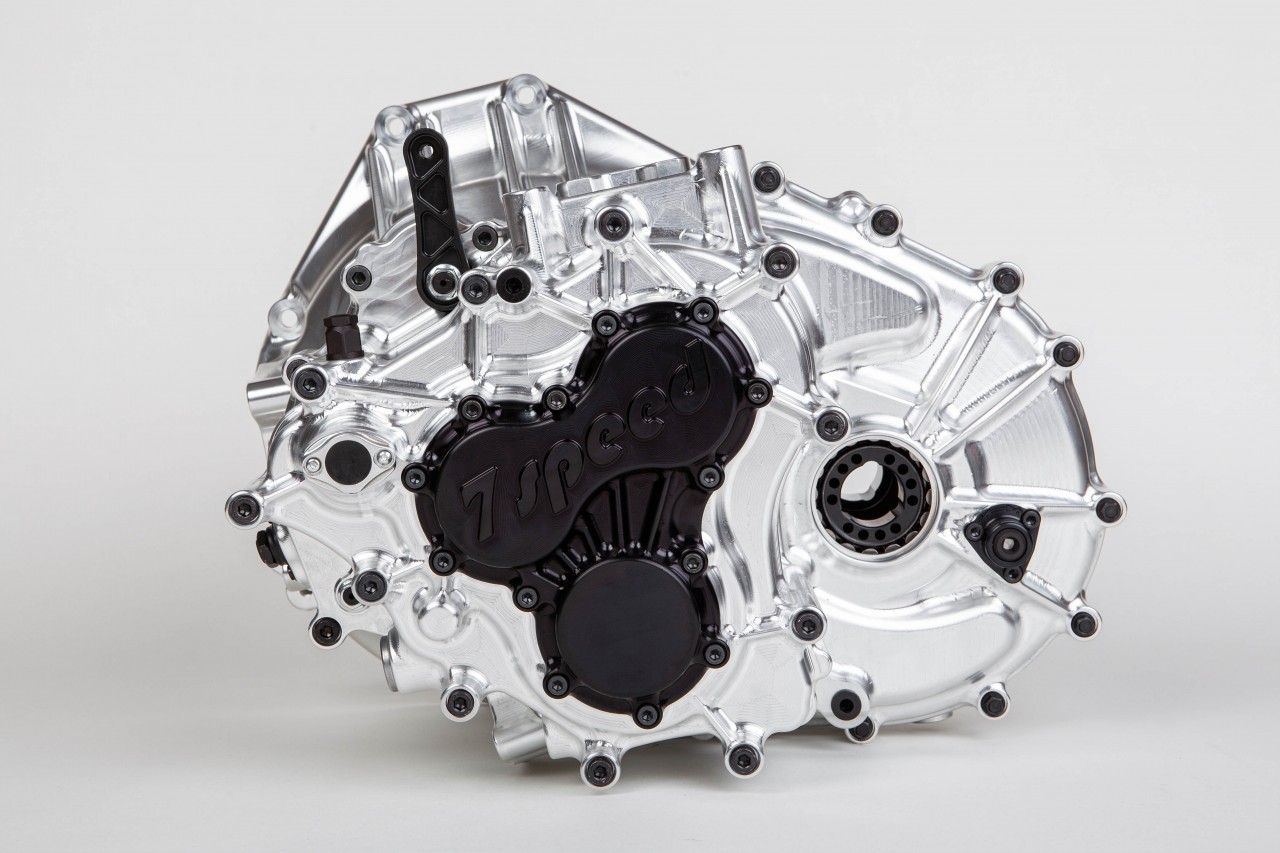

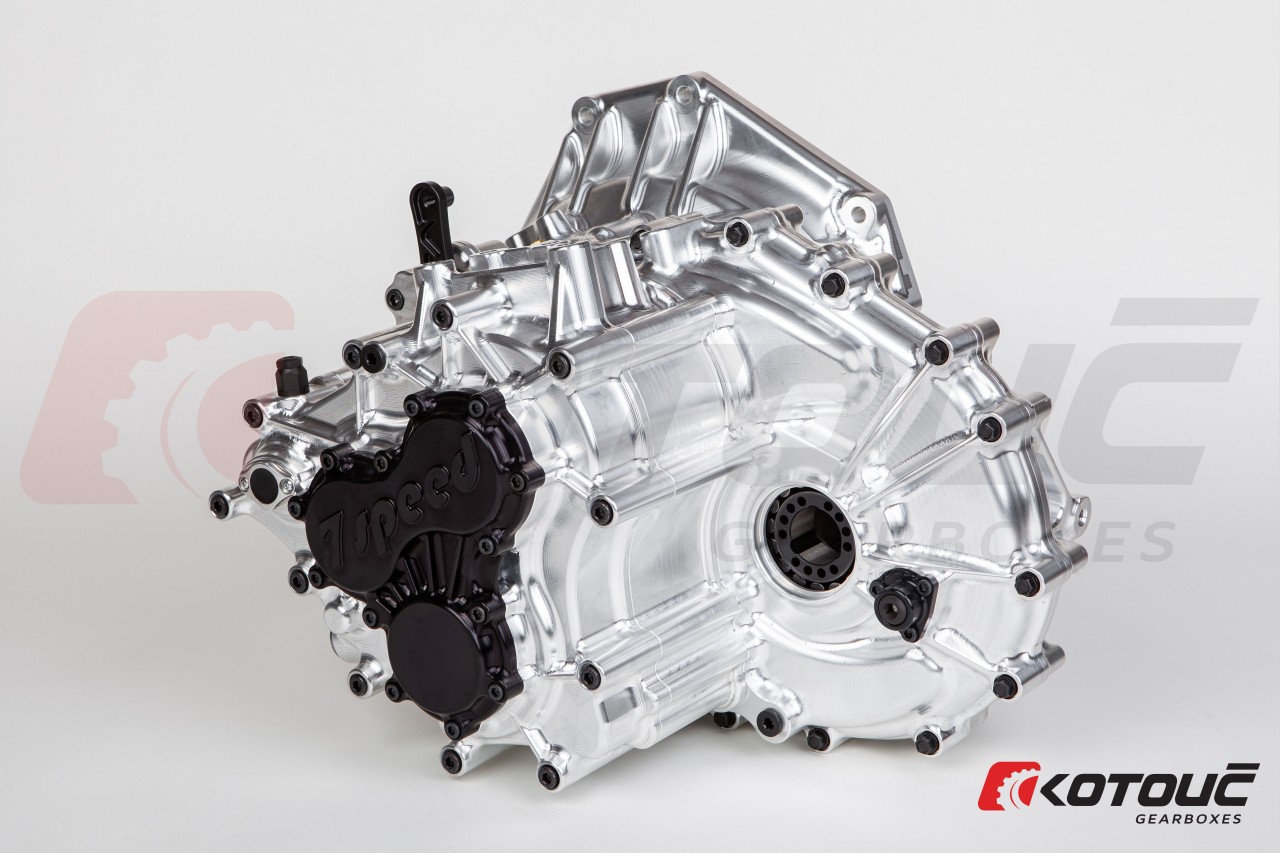

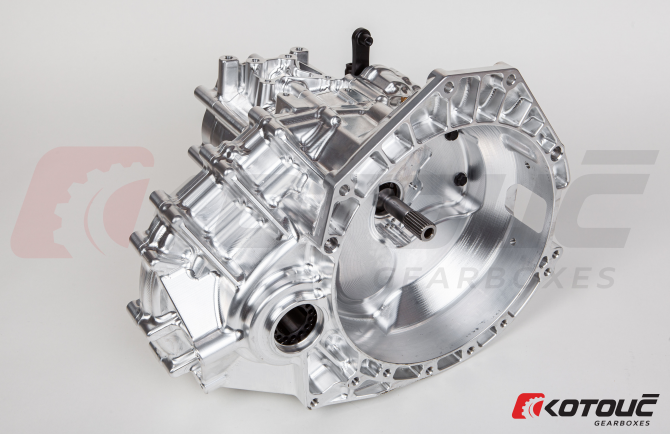

FNJ-7S Noble Sequential gearbox

Ford MMT6 replacement

Noble Ford

Kit includes

  • Limited Slip Differential LSD – Externally adjustable!
  • Complete Bilet aircraft grade aluminium casings
  • Sequential Mechanism with Dog engagement
  • Input and Dual Output Shafts
  • Final drive
  • Gears 1st-7th
  • Shifting Forks
  • Shifting Rods
  • Complete Bearing and Needle Bearing set
  • Gear Position Indicator Sensor
  • Inlet / Outlet for oil pump and cooler
  • Position for oil temperature sensor
Contact us

Shift Speed

< 40 millisecond

Kit weight

55 Kg

Gearbox type

Sequential

Torque rating

1050 ft lbs / 1400 Nm

Our advantages

The FNJ-7S 7 SPEED sequential gearbox from Kotouc Gearboxes is the performance difference that the Noble and Ford community has been waiting for. Whether it be on the drag strip, racetrack or street, the FNJ-7S sequential gearbox will have your car outperforming the competition. It is designed as a replacement for the MMT6 Ford gearbox and can suit the Ford Duratech V6 engine. The gearbox was developed following a strong demand from our customers needing to gain the additional performance and reliability that the factory original. Faster acceleration, higher strength, lightweight, quicker shifts and a range of ratios able to match with any track requirements!



The FNJ-7S 7 SPEED Sequential Gearbox incorporates special dogring technology for short, smooth and quick gear changes. Flatshifting of gears in as little as 40 milliseconds.

Unique to the Noble 7 SPEED full sequential gearbox is the externally adjustable nut for setup of differential preload. The differential has a maximum adjustment to 13kg and customisable ramp angles can be produced if required. Standard ramp angles are 53/0 and 40/0.

  • Application: Complete VW range of vehicles
  • Gearbox Type: 7 speed full sequential gearbox
  • Weight: 58.4kgs
  • Max torque: 1500NM
  • Gear shift layout: R-N-1-2-3-4-5-6-7-R-N-1-2...
  • Tooth Profile: straight cut
  • Shift speed:

All components are REM isotropical superfinished as standard!

Gear ratios available

FNJ-7S Noble sequential V1 3.86 3.38

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 30t 12t 2,50
3rd 29t 17t 1,71
4th 25t 16t 1,56
5th 25t 22t 1,14
6th 25t 26t 0,96
7th 20t 21t 0,95
