Kit includes

  • Limited Slip Differential LSD – Externally adjustable!

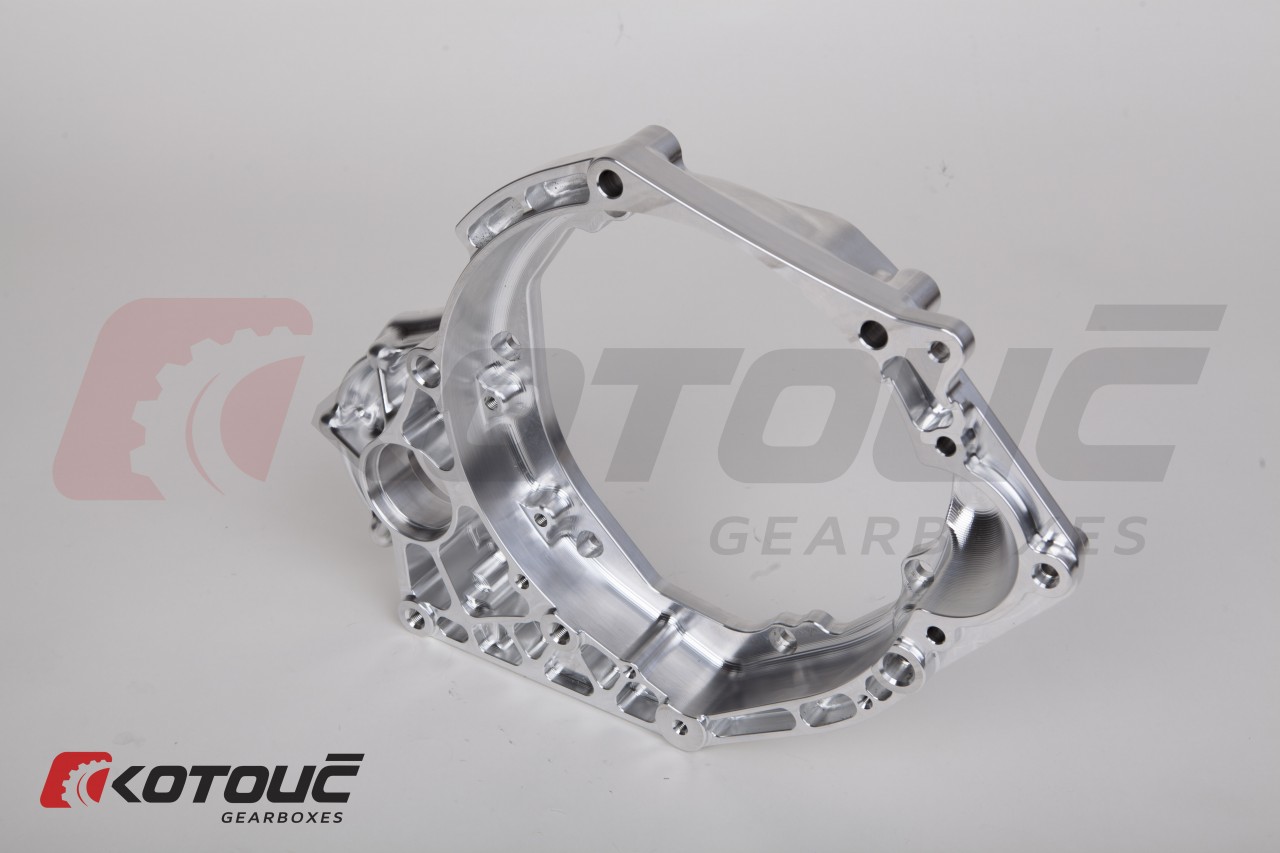

  • Complete Bilet aircraft grade aluminium casings
  • Sequential Mechanism with Dog engagement
  • Input and Dual Output Shafts
  • Final drive
  • Gears 1st-7th
  • Shifting Forks
  • Shifting Rods
  • Complete Bearing and Needle Bearing set
  • Gear Position Indicator Sensor
  • Inlet / Outlet for oil pump and cooler
  • Position for oil temperature sensor
Contact us

Gearbox type

Sequential

Shift Speed

< 40 millisecond

Kit weight

55 Kg

Torque rating

1050 ft lbs / 1400 Nm

Our advantages

With the popularity of our 7 speed sequential gearboxes increasing substantially, we release the universal sequential design to cater for all the additional cars out there looking for a strong reliable solution.

All components are possible to moify to suit your installation. Just send us your data or components and we will engineer the gearbox to suit you!

For those looking to upgrade, the sequential gearbox is prepared for a hydraulic clutch bearing, and mounting position for a piston in the case of paddle shifting. An oil outlet and inlet are available for the compatibility of an oil pump and cooler and a spare thread prepared for an oil temperature sensor.

Our dogring technology and engineering of the shifting barrel allows for the smoothest and cleanest shifting gearbox on the market. The arrangement of the gearing on the shafts allow for a 7 speed gearbox in a space usually that only 5 gears would fit. Moreover, the maxiximum width of the gears are 25mm!! Almost twice the size of the original Toyota gears.

As the demand for this gearbox is already high, there is no tome to wait! Call us today to get your hands on this amazing gearbox!

  • Application: Universal
  • Gearbox Type: 7 speed full sequential gearbox
  • Weight: 55.4kgs
  • Max torque: 1500NM
  • Gear shift layout: R-N-1-2-3-4-5-6-7-R-N-1-2...
  • Tooth Profile: straight cut
  • Shift speed:
All components are REM isotropical superfinished as standard!
