Mitsubishi

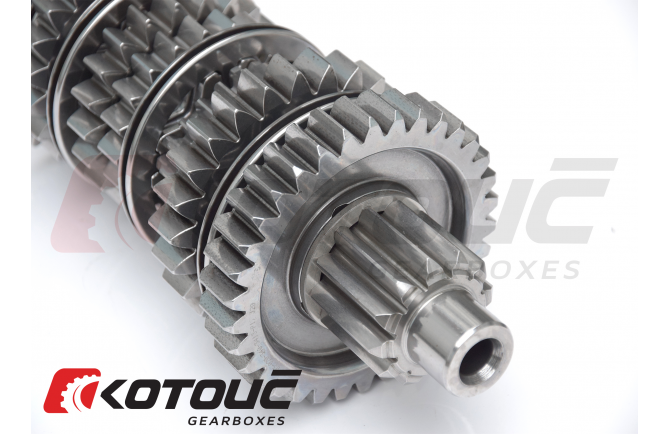

Mitsubishi Sequential Gearbox kit Evo X

NEW BLACK EDITION! 6 speed

Kit includes

  • Complete Sequential Mechanism with Dog engagement
  • Main rear casing
  • Final Drive
  • Input and Output Shafts
  • Gears 1st-6th
  • Shifting Forks
  • Shifting Rods
  • Complete Bearing and Needle Bearing set
  • Internal Oil Pump with Inlet/Outlet
  • Hydraulic Inlet/Outlet
  • Gear Position Indicator Sensor
  • Holder for silenblock
  • Internal Shifting Piston optional
Contact us

Our advantages

The Mitsubishi Full Sequential Gearbox is the fastest shift on the market today. It is designed with 6 gears for increased accelleration performance!!

Rated to 800NM torque!

The Mitsubishi Full Sequential Gearbox for Evo X incorporates the Kotouc Gearboxes patented dogring technology for short, smooth and quick gear changes. Flatshifting of gears in as little as 40 milliseconds.

The gearbox is supplied with an internal oil pump to maintain low transmission oil temperatures. The inlet and outlets allowing for universal compatibility with oil coolers.

The Full Sequential Gearbox also has been future proofed for hydraulic paddle shifting.

  • Weight: 54.7kgs
  • Max torque: 800NM
  • Gear shift layout: R-N-1-2-3-4-5-6-R-N-1-2...
  • Custom ratios are available

Gear ratios available

Mitsubishi sequential gearbox Evo X P1

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 24t 24t 1,00
6th 20t 24t 0,83

Mitsubishi sequential gearbox Evo X P2

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 24t 24t 1,00
6th 20t 24t 0,83

Mitsubishi sequential gearbox Evo X P3

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89

Mitsubishi sequential gearbox Evo X P4

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 24t 24t 1,00
6th 20t 24t 0,83

Mitsubishi sequential gearbox Evo X P5

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89

Mitsubishi sequential gearbox Evo X P6

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89

Mitsubishi sequential gearbox Evo X P7

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89

Mitsubishi sequential gearbox Evo X P8

GEAR Tooth count GEAR
ratio
output input
1st 34t 13t 2,62
2nd 25t 13t 1,92
3rd 22t 15t 1,47
4th 22t 18t 1,22
5th 25t 24t 1,04
6th 25t 28t 0,89
